Droplet flow control is the ability to regulate how droplets are formed, moved, and manipulated inside a microfluidic system. In these systems, tiny liquid droplets, often water in oil, act as isolated microreactors for chemical or biological experiments. To ensure accurate results, the size, speed, and timing of these droplets must be highly consistent.
Achieving this level of precision depends heavily on the control of fluid flow. Even small variations in flow rate, pressure, or interfacial tension can lead to changes in droplet size or spacing, which affects the stability and reliability of experiments. Whether you’re working in drug delivery, analytical chemistry, or single-cell biology, controlling droplet behavior is critical to achieving reproducible and high-quality data.
Flow control systems—like pressure controllers or syringe pumps, play a central role in this process. But not all methods offer the same level of stability or accuracy. In advanced microfluidic applications, especially those requiring monodisperse droplets or high throughput, precise droplet flow control isn’t just helpful, it’s essential.
This tech note explores how flow control impacts droplet generation and introduces solutions designed to improve accuracy, reduce variability, and support demanding microfluidic experiments.
In microfluidic systems, droplet generation happens when two immiscible fluids, like water and oil, are pushed through narrow microchannels at controlled speeds. At specific junctions, such as a T-junction or flow-focusing region, the flow of one liquid breaks up into individual droplets within the other phase. This process depends entirely on precise flow control.
From Development and future of droplet microfluidics – Lab Chip, 2024, 24, 1135 – Lang Nan, Huidan Zhang, David A. Weitz and Ho Cheung Shum.
Why? Because the flow rate of both the continuous phase (usually oil) and the dispersed phase (often water) determines the size, frequency, and stability of the droplets produced. If the flow is unstable, the droplets become irregular, leading to poor reproducibility, inconsistent concentrations, or even failed experiments.
Several flow-related parameters affect droplet generation:
Even slight variations in flow, caused by pump pulsations, resistance changes, or tubing elasticity, can lead to size variations, merging, or premature droplet break-up. This is particularly problematic in applications like single-cell analysis, drug delivery, or diagnostic assays, where droplet uniformity and timing are critical.
That’s why reliable and stable flow control is key. In research settings, users often rely on syringe pumps or pressure-based systems to regulate the fluid motion. Each technology comes with trade-offs: pressure controllers are fast and smooth but more complex and costly; syringe pumps are accessible but often produce pressure oscillations at low speeds, resulting in high variability.
AMF has seen this challenge firsthand. One customer working on 3D organoid models for personalized medicine needed consistent droplet segmentation across hundreds of test conditions. Their results improved dramatically when they replaced a standard valve and pump setup with AMF’s fully PTFE rotary valve and HD syringe pump, reducing variability and improving repeatability.
Flow control isn’t just a technical detail, it defines the success of droplet-based experiments. Whether for high-throughput screening or precise chemical reactions, mastering flow parameters is essential to generate uniform droplets and unlock the full potential of microfluidic technology.
In droplet-based microfluidics, the actuation system, the tool that drives fluid into the microfluidic chip, directly influences how droplets are created and controlled. These systems regulate the flow rate and pressure, both of which are critical to determine droplet size, frequency, and uniformity. Choosing the right actuation method can make the difference between stable, monodisperse droplets and a failed experiment.
Below is an overview of the most common actuation systems, their operating principles, and how they impact droplet flow control.

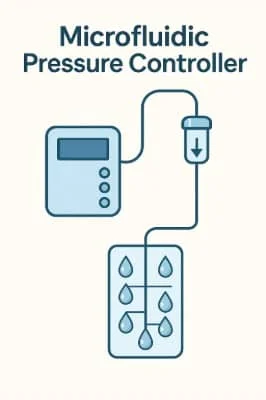

Pressure-driven systems use regulated air or gas pressure to push fluid from reservoirs into the microfluidic chip. Because pressure is applied directly to the fluid reservoir, this method provides fast response times, smooth flow, and low pulsation, making it ideal for high-frequency droplet generation.
Pros:
Cons:
This method is widely used in professional research environments and for droplet sorting or emulsion production, where flow control accuracy is critical.

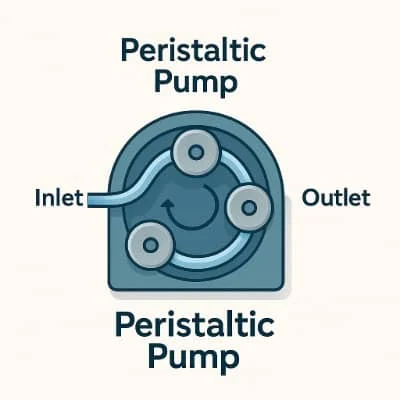

Peristaltic pumps use rotating rollers to compress flexible tubing, pushing the fluid forward. While this creates continuous flow, it introduces strong pulsations that disturb droplet formation.

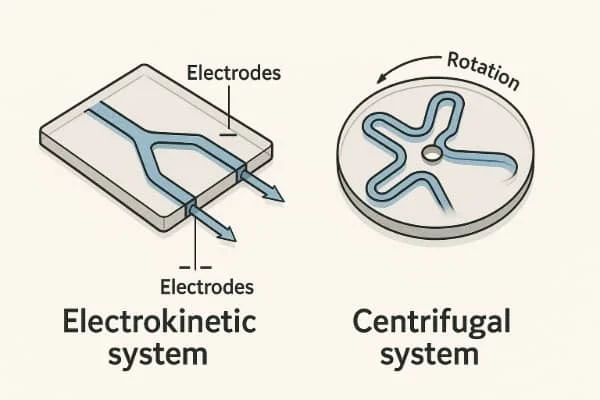

These compact systems use electric or centrifugal forces to move fluids without mechanical contact. They’re attractive for portable applications, but they lack the precision and responsiveness needed for stable droplet generation.
These micro-scale pumps use piezoelectric elements to generate short, sharp fluid pulses. While fast and compact, their bursty flow pattern makes it difficult to achieve steady droplet production.

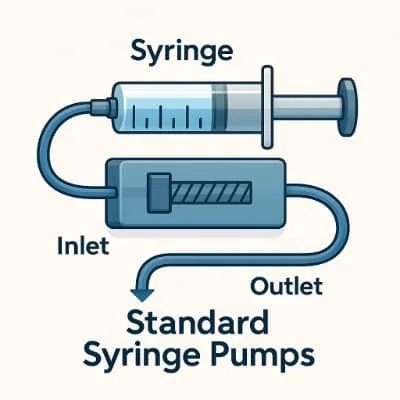

Syringe pumps are the most commonly used actuation system, especially in academic labs. They move fluid using a motor-driven plunger that advances at a constant speed. However, standard syringe pumps often operate in open-loop mode, without feedback control, leading to flow-rate fluctuations, especially at low speeds.
As shown in Zeng et al. (2015) and Kim et al. (2019), the mechanical oscillations of the motor and elasticity of rubber syringes cause pressure instability and droplet size variation. This is particularly problematic for applications requiring monodisperse droplets or real-time droplet production.
Advanced programmable syringe pumps, like AMF’s HD syringe pump series (SPM and LSPone), address these issues using closed-loop feedback and precision mechanics to deliver pulsation-free flow, even at low speeds.
In summary, each actuation method has unique advantages and limitations. For applications requiring stable, precise droplet formation, such as in single-cell analysis, drug screening, or digital PCR, actuation systems must deliver consistent flow rates, free of pulsation and pressure spikes. Traditional syringe pumps often fall short, but advanced solutions like AMF’s HD syringe pump systems offer the control and flow rate stability needed for today’s microfluidic platforms.
Conventional syringe pumps are widely used in microfluidic labs, but when it comes to precise droplet generation, they often fall short. The main issue is flow instability, especially at low flow rates. Studies have shown that mechanical elements like stepper motors, gears, and rubber syringes introduce vibrations, delays, and pressure overshoot. This causes inconsistent droplet size and poor reproducibility in experiments.
In one study (Kim et al., 2019), a typical syringe pump showed three major problems: overshoot at startup, steady-state error, and slow response times. These issues directly affect sensitive processes like flow focusing, where stable microfluidic flow is essential to create monodisperse droplets. In applications such as sample preparation or drug discovery, even small variations in droplet size can lead to incorrect data or failed experiments.
A customer developing a platform for testing 3D organoids faced this problem. Switching to AMF’s PTFE rotary valve and HD syringe pump greatly improved flow stability and droplet consistency. This demonstrates how upgrading flow control tools directly enhances performance in droplet-based microfluidics, particularly for active droplet manipulation, detection, and high-throughput workflows.

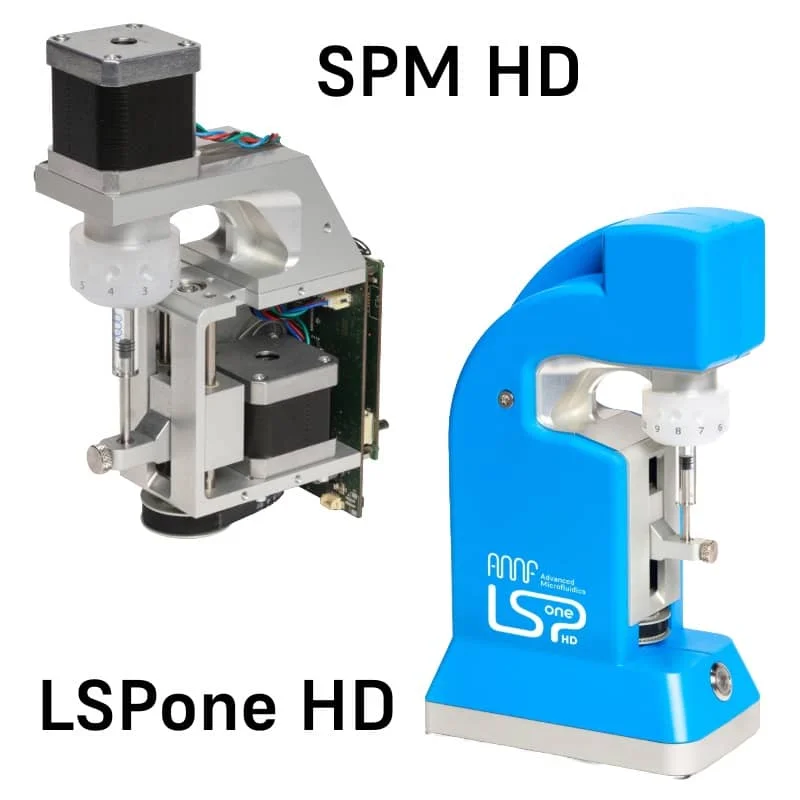

Precise and stable flow control is essential for high-quality droplet generation in microfluidic systems. To meet this demand, Advanced Microfluidics (AMF) has developed the LSPone HD and SPM HD series, next-generation high-definition syringe pumps designed to deliver unmatched accuracy and reproducibility, even at ultra-low flow rates.
The LSPone HD (P110-L) and LSPone+ HD (P111-L) are advanced laboratory syringe pumps created for researchers who need precise control over flow in sensitive microfluidic experiments. These pumps eliminate common problems found in traditional syringe systems, such as flow pulsations, startup delays, and overshoot. With closed-loop feedback, smooth linear motion, and a completely redesigned internal drive, the LSPone HD ensures a low coefficient of variation (CV), making it ideal for droplet-based microfluidics, sample preparation, and droplet size control.
For system integrators and OEMs, AMF offers the SPM HD series (P110-O and P111-O), based on the same high-performance technology but tailored for embedded applications. The SPM HD offers direct integration into compact devices, without a built-in software interface, giving full flexibility for those who need to program and automate their own systems.
Key benefits of both the LSPone HD and SPM HD pumps:
Enables consistent droplet formation, even at very low flow rates, ideal for sensitive experiments and microreactor setups.
Ensures reproducibility and low variation (CV) in droplet size and spacing, critical for drug screening, sample preparation, and single-cell analysis.
Compatible with lab automation setups (LSPone+) and OEM integration (SPM HD) for seamless operation.
Supports advanced operations such as flow focusing, active droplet sorting, droplet encapsulation, and emulsion production.
Actively compensates for disturbances, friction, or backpressure changes to maintain a constant flow rate throughout the experiment.
Reduces sample loss and carry-over, helping to preserve rare or expensive reagents.
LSPone includes intuitive PC software; SPM HD can be controlled via serial commands for embedded systems or custom interfaces.
Enables complex workflows like reagent loading, sample switching, or multi-phase droplet generation.
Industrial-grade components ensure long-term reliability with minimal maintenance, even in high-frequency setups.
When paired with AMF’s custom microfluidic valves, these pumps form a powerful solution for controlling microfluidic flow, improving droplet monodispersity, and ensuring consistent results across experiments.
Whether you’re running a high-throughput screening platform or developing a next-gen diagnostic device, AMF’s HD syringe pumps offer the precision and stability required for today’s most demanding microfluidic applications.
Precise droplet flow control plays a critical role in many microfluidic devices used across life science, chemistry, and health-related fields. In droplet-based microfluidics, maintaining a stable flow of discrete droplets helps ensure the accuracy of single-cell studies, tissue engineering, and alginate-based encapsulation. In these systems, small changes in viscosity, surface tension, or phase flow parameters can disrupt results.
Applications include sample preparation for lab-on-a-chip diagnostics, activated droplet detection, and high-throughput screening for drug discovery. Systems often operate with water-in-oil emulsions, requiring consistent flow to prevent irregular drop sizes.
Whether you’re working with an arduino-based microfluidic platform in the lab, developing a sensor for point-of-care testing, or scaling a product for clinical use, flow control helps regulate real-time processes and ensures data reproducibility. Articles indexed in PubMed, reviews from the National Academy of Sciences, and sci-based engineering publications confirm that flow stability is a key advancement in droplet-based microfluidic techniques.
