In laboratories, automated liquid handling has become a key part of how experiments are designed and executed. As workflows grow more complex, especially in life sciences, researchers need to process more samples, manage smaller volumes of liquid, and maintain high levels of precision and reproducibility. This shift is pushing laboratories away from manual pipetting and toward more reliable automation solutions.
Traditional liquid handling, based on manual pipette use, still plays an important role in many labs. However, it comes with clear limitations. Manual pipetting is time-consuming, depends heavily on the operator, and can introduce variability between experiments. Even small inconsistencies in sample preparation or sample transfer can impact results, especially when working with sensitive assays, genomic DNA, or nucleic acid workflows.
To address these challenges, laboratories are increasingly adopting automated liquid handling systems, including liquid handling robots and liquid handling workstations. These systems are designed to improve precision and accuracy, reduce human error, and increase overall efficiency. By automating repetitive liquid handling tasks such as dispensing, mixing, and transferring samples, they help streamline laboratory workflows and enable more consistent results across experiments.
At the same time, research is moving toward more integrated and compact platforms, combining liquid handling automation with other technologies such as imaging, analysis, and real-time monitoring. This evolution reflects a broader trend in laboratory automation, where standalone instruments are replaced by automated platforms capable of handling multiple steps within a single process.
In this context, recent work published in Nature Communications presents an innovative approach to automated liquid handling. The study introduces a compact and integrated system designed to perform complex laboratory workflows with high precision, while reducing manual intervention. It provides a clear example of how automated liquid handling is evolving to meet the needs of modern laboratories and advanced applications in life sciences.
To better understand the value of this study, it is important to look at what automated liquid handling systems are and how they are used in modern laboratories. These systems are designed to perform liquid handling tasks such as aspirating, dispensing, mixing, and transferring samples with a high level of precision and repeatability.
At their core, automated liquid handlers replace manual pipetting by using controlled mechanisms to handle a defined volume of liquid. This can be achieved through different technologies, including pipetting robots based on air displacement or positive displacement pipette systems, as well as syringe-based devices for more precise and continuous flow control. In all cases, the goal is to ensure accurate and consistent sample handling, regardless of the operator or the number of repetitions.
A typical liquid handling robot or workstation combines several elements. It includes a mechanical system, often a robotic arm, capable of moving across plates, tubes, or reservoirs. It also integrates a pipetting mechanism or dispensing device, along with software that controls protocols, sequences, and parameters. These automated platforms can manage multiple channels, handle different liquid types, and adapt to a wide range of laboratory workflows.
The main advantage of automated liquid handling lies in its ability to improve the performance of laboratory processes. By reducing human error, these systems increase the reliability of experimental data. They also help increase efficiency by running repetitive tasks faster and without interruption. As a result, laboratories can improve productivity, process more samples in parallel, and support applications such as high-throughput screening, genomic DNA analysis, or complex assay development.
Another key benefit is the ability to streamline workflows. Automated systems can perform multiple steps in sequence, from sample preparation to sample processing, without manual intervention. This is particularly valuable in clinical diagnostics, drug discovery, and life science research, where consistency and traceability are critical.
Because of these advantages, automated liquid handling systems are now widely used across a wide range of applications, including nucleic acid extraction, library preparation for next-generation sequencing (NGS), cell-based assays, and diagnostic procedures. They have become an essential part of laboratory automation, supporting modern laboratories in managing increasingly complex experimental setups.
This growing need for flexible, precise, and integrated liquid handling automation solutions is exactly what the publication aims to address.

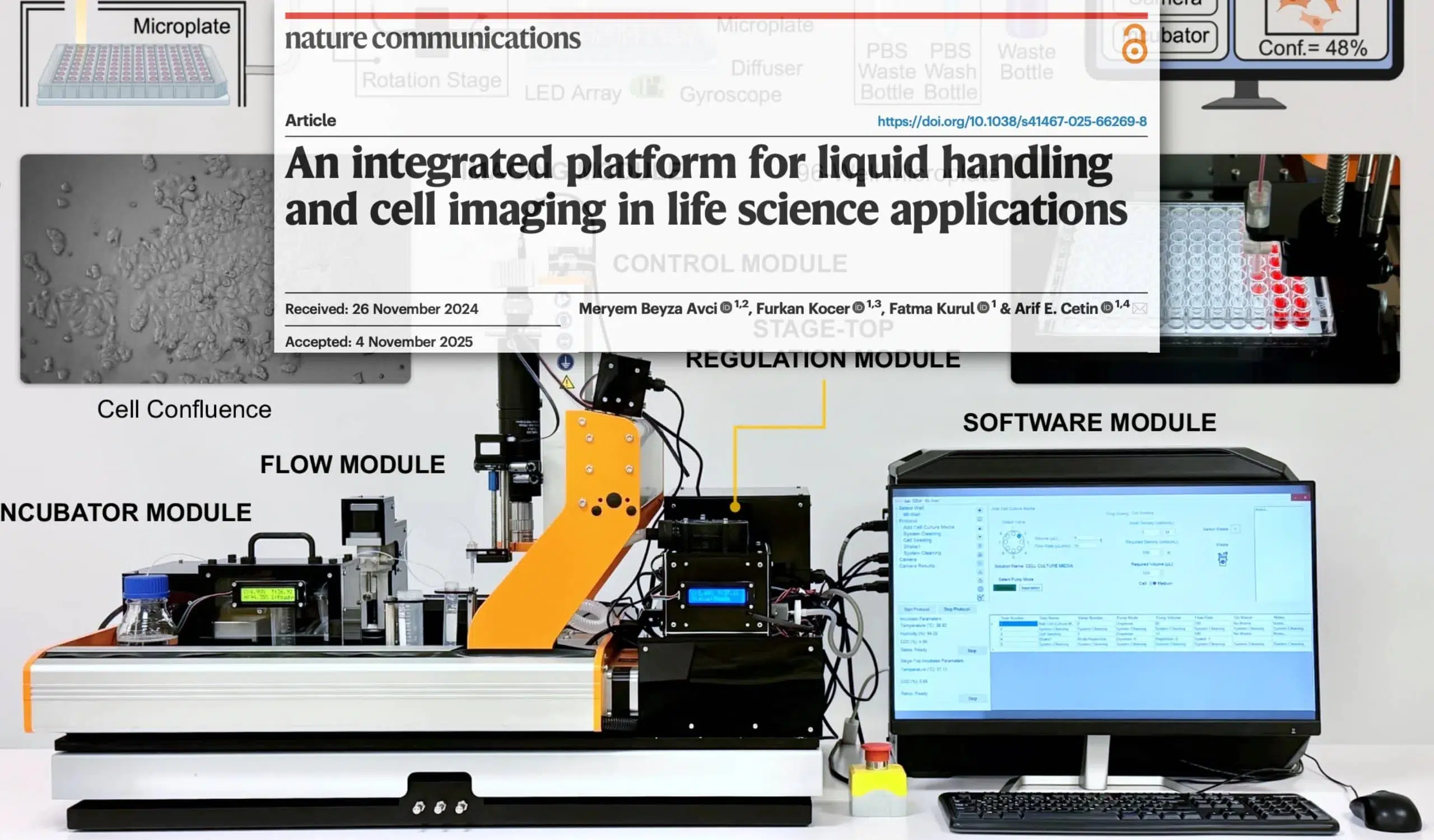

The publication presents a new generation of automated liquid handling platform designed to simplify and enhance laboratory workflows. Instead of relying on separate instruments for each step, the system integrates multiple functions into a single automated platform, combining liquid handling, imaging, and data processing within one compact device.
This approach reflects a clear evolution in laboratory automation. In many laboratories today, liquid handling workstations, imaging systems, and analysis tools operate independently. This can create complexity in workflows, increase the risk of error during sample transfer, and require additional time for coordination between instruments. The platform introduced in this study addresses these limitations by bringing all these capabilities together.
At the center of the system is a liquid handling robot designed to perform a wide range of tasks, including sample preparation, reagent dispensing, media exchange, and drug dosing. The platform is built to handle different sample volumes and liquid types while maintaining high levels of precision and accuracy. It is particularly suited for applications where reproducibility is critical, such as cell-based assays, drug discovery workflows, and genomic experiments.
One of the key strengths of this system is its ability to support a wide range of applications within a single setup. The study demonstrates its use in cell culture, where it performs automated seeding, washing, and treatment of cells. It also highlights applications in sample processing, including precise dosing and controlled liquid handling for biological experiments. This versatility makes it relevant for many areas of life sciences, from basic research to more applied workflows like clinical diagnostics or assay development.
Another important aspect is the accessibility of the platform. Unlike large-scale industrial automated liquid handling systems, which can be expensive and complex, this solution is designed as a benchtop workstation. It offers a more compact and cost-effective alternative, making automation solutions more accessible to academic laboratories and smaller research facilities. By combining automated liquid handling, imaging, and real-time data analysis in a single system, the study illustrates how modern automated platforms can help laboratories increase efficiency, reduce error, and improve productivity. It also highlights a broader trend toward more integrated and flexible lab automation technologies, capable of adapting to increasingly complex experimental workflows.
To fully understand how this platform achieves such performance, it is important to look at the technologies and methods behind its liquid handling capabilities.
To achieve reliable and automated liquid handling, the platform described in the publication relies on a combination of precise fluid control, robotic positioning, and intelligent software. These elements work together to perform complex liquid handling tasks with high precision and accuracy, even at very low sample volumes.
At the core of the system is a syringe-based liquid handling mechanism, coupled with a multi-port rotary valve. Unlike traditional pipetting robots that rely on disposable pipette tips, this approach enables continuous and controlled transfer of liquid through tubing. It allows the system to manage a wide range of volumes, from nanoliters to milliliters, while maintaining consistent performance. This is particularly important for applications requiring stable flow and precise dosing, such as sample preparation, drug delivery, or cell-based assays.
The system is also designed to minimize common issues in liquid handling automation, such as dead volume and carryover. By optimizing the internal fluidic path and using low internal volume components, it reduces the risk of contamination between samples and improves the reliability of results. This contributes directly to more consistent and accurate experimental outcomes.
In addition to fluid control, the platform integrates a multi-axis robotic system responsible for positioning and movement. This includes linear axes for motion across plates and a rotational axis that enables more delicate handling of samples. The use of such robotic systems allows precise alignment with microplates, ensuring accurate dispensing and aspiration during each step of the workflow. It also supports gentle handling of biological samples, such as cells, which is critical in many life science applications.
Software plays a central role in coordinating all these operations. The platform includes a control interface that allows users to define protocols, manage sequences, and monitor experiments in real time. This level of control is essential for executing complex, multi-step laboratory workflows, where timing, volume, and positioning must be carefully synchronized. It also enables better data tracking and reproducibility across experiments.
The study demonstrates the performance of this integrated liquid handling technology across several use cases. These include automated cell seeding, where precise volume of liquid and uniform distribution are required, as well as drug dosing experiments that depend on accurate concentration control. The system is also used for sample processing tasks such as washing, media exchange, and even droplet generation, highlighting its versatility across a wide range of applications. Overall, the combination of syringe-based flow control, advanced automation, and coordinated software creates a highly efficient and precise automated liquid handling system. These capabilities are essential for modern laboratories looking to reduce human error, increase efficiency, and handle increasingly complex experimental setups.
This technical foundation also explains how specific components, such as high-precision syringe pumps and valves, play a critical role in enabling such performance.
Within this integrated automated liquid handling system, fluid control is a critical element that directly impacts performance, reproducibility, and overall workflow reliability. In the publication, this role is fulfilled by the syringe pump combined with the rotary valve, the SPM Industrial Programmable Syringe Pump, forming the core of the liquid handling module.
This configuration enables precise control over the volume of liquid being transferred, which is essential for many liquid handling tasks such as sample preparation, reagent dispensing, and drug dosing. Unlike traditional pipetting robot approaches based on disposable pipette tips, this system uses a continuous flow architecture. This allows smooth and controlled transfer of liquid, reducing variability and enabling more consistent results across experiments.
One of the key advantages of this approach is the ability to handle very small sample volumes with high precision and accuracy. The study shows that the system can deliver nanoliter-scale volumes with deviations below 5%, which is critical for applications in life sciences, including cell-based assays and genomic DNA workflows . This level of performance would be difficult to achieve with standard manual pipetting or less advanced liquid handling equipment.
Another important aspect is the reduction of dead volume and carryover. The AMF rotary valve is designed with minimal internal volume and optimized fluid paths, which helps reduce error and prevent cross-contamination between samples. This is particularly valuable in workflows involving multiple reagents or sensitive nucleic acid samples, where even small contamination can impact results.
The integration of AMF components also supports continuous and flexible operation. By switching between different channels of the rotary valve, the system can handle multiple reagents and perform sequential steps without manual intervention. This contributes to more efficient and streamlined laboratory workflows, especially in automated sample processing and multi-step assays.
Beyond performance, this setup also improves reliability in real experimental conditions. The controlled flow provided by the syringe pump allows gentle handling of biological samples, such as cells, reducing stress and preserving sample integrity. This is a key requirement for applications like cell culture, drug testing, and other sensitive biological experiments.
Overall, the use of AMF technology within this platform demonstrates how high-quality microfluidic flow control components can enhance automated liquid handling systems. By enabling precise, low-volume, and contamination-free liquid transfer, these components play a central role in delivering the level of performance, accuracy, and consistency required in modern laboratories.
These capabilities reflect broader needs in the field and align closely with the design principles behind AMF’s own liquid handling solutions.
The performance demonstrated in this publication reflects a broader shift in how automated liquid handling systems are designed today. Laboratories are no longer looking only for standalone liquid handling robots, but for flexible and precise automation solutions that can be integrated into their own workflows, instruments, or custom platforms.
This is where AMF’s approach fits naturally. Rather than offering a fixed liquid handling workstation, AMF provides high-precision microfluidic components that can be integrated into a wide range of automated platforms. These include syringe pumps, rotary valves, and fluidic modules designed for accurate and reliable liquid handling across different applications. At the core of these solutions is the ability to control very small sample volumes with high precision and accuracy. AMF syringe pumps are designed for stable and reproducible flow, making them suitable for demanding life science applications such as sample preparation, drug dosing, and assay development. Combined with low dead volume rotary valves, they enable clean and efficient sample transfer, reducing the risk of contamination and improving overall data quality.
Another key aspect is flexibility. Modern laboratories often require customizable platforms that can adapt to specific protocols, whether for NGS library prep, genomic DNA workflows, or clinical diagnostics. AMF components are built to support these needs, allowing engineers and researchers to create tailored liquid handling automation setups rather than relying on rigid, one-size-fits-all systems.
From a system perspective, this also supports better integration into existing laboratory workflows. AMF solutions can be easily combined with external software, imaging systems, or other analytical instruments, enabling the development of fully integrated lab automation environments. This is particularly relevant for applications requiring multi-step processes, where coordination between different devices is essential to maintain efficiency and consistency.
In addition, AMF focuses on delivering robust and reliable liquid handling equipment that meets the expectations of both academic and industrial users. This includes support for a wide range of liquid types, compatibility with different consumables, and the ability to operate in both low-throughput and higher-throughput environments. Whether used in a benchtop setup or integrated into a more complex robotic system, these components are designed to maintain stable performance over time. Ultimately, choosing an automated liquid handling system today is not only about selecting a single device, but about building the right combination of technologies. Factors such as precision, flexibility, ease of integration, and technical support all play a role in determining the best solution for a given application.
AMF’s solutions are built around these principles, providing the building blocks for innovative and efficient liquid handling automation in modern laboratories.
This study provides a clear and practical example of how automated liquid handling is evolving in modern laboratories. By combining precise fluid control, robotic systems, and integrated software within a single platform, it demonstrates how complex laboratory workflows can be simplified while maintaining high levels of precision and accuracy.
For researchers working in life sciences, this type of automation solution opens new possibilities. It enables more reliable sample preparation, improves reproducibility in assays, and supports a wide range of applications, from cell-based experiments to genomic DNA and nucleic acid workflows. It also highlights how moving away from manual pipetting toward more advanced automated liquid handling systems can significantly reduce error, increase efficiency, and improve productivity.
Beyond the specific platform presented in the publication, the underlying technologies, such as syringe-based flow control and low dead volume fluidic design, illustrate key directions for the future of liquid handling automation. These approaches are particularly relevant for laboratories looking to build more flexible, scalable, and integrated systems.
